US Wall Plate 4K Multi Format Video Switch with HDMI, VGA, Audio, Decora Type
VKSMV-A312W
Wall-Mount Video Switcher (3x2) with Video Auto-Switching, Video Splitter, HDMI Booster, ADC Converter, Audio Embedding, EDID, and Serial/ GUI Control, VKSMV-A312W
Wall-Mount Video Switcher, VKSMV-A312W a sturdy 4K Multi-Format Video Switch Splitter unit, supports HDCP 1.4 protection, auto power saving, audio embedding, and Serial control. Rextron Dual Gang Wall-Mount Video Switcher provides AV connectivity for most of the communication connection types the computer hookups needed, which includes HDMI, DP (option), VGA, Audio, and Serial. Housed in a compact form factor, the multi-format AV interfaces support intelligent AV switching function. VKSMV-A312W allows laptops to be easily connected to the system making Rextron Video Switcher the perfect addition to boardroom table.

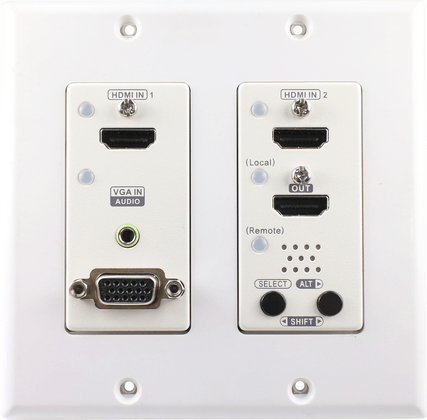

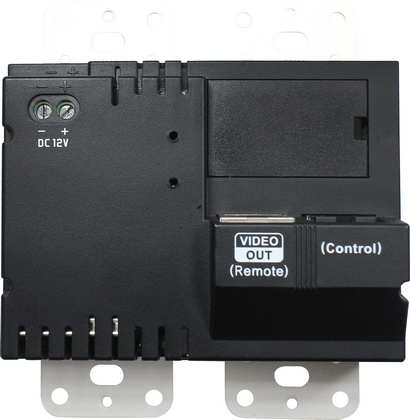

The Dual Gang Wall-Mount Video Switcher is designed with video inputs and outputs at front panel and rear side of the unit and is suitable for wall-mounting or under-the-table system installation such as lecture hall, conference room or boardroom. It can be installed in minutes and requires no special programming.
VKSMV-A312W Video Switcher provides comprehensive EDID management, such as Auto Learning, factory default and EDID Copy modes to ensure that every incoming video source is displayed at the optimal resolution and format without compatibility issue. It also enables users to copy or learn EDIDs automatically from the connected monitor.
Unique Video Auto-Switching function
Wall-Mount Video Switcher, VKSMV-A312W a sturdy 4K Multi-Format Video Switch Splitter unit, supports HDCP 1.4 protection, auto power saving, audio embedding, and Serial control. Rextron Dual Gang Wall-Mount Video Switcher provides AV connectivity for most of the communication connection types the computer hookups needed, which includes HDMI, DP (option), VGA, Audio, and Serial. Housed in a compact form factor, the multi-format AV interfaces support intelligent AV switching function. VKSMV-A312W allows laptops to be easily connected to the system making Rextron Video Switcher the perfect addition to boardroom table.
The Dual Gang Wall-Mount Video Switcher is designed with video inputs and outputs at front panel and rear side of the unit and is suitable for wall-mounting or under-the-table system installation such as lecture hall, conference room or boardroom. It can be installed in minutes and requires no special programming.
VKSMV-A312W Video Switcher provides comprehensive EDID management, such as Auto Learning, factory default and EDID Copy modes to ensure that every incoming video source is displayed at the optimal resolution and format without compatibility issue. It also enables users to copy or learn EDIDs automatically from the connected monitor.
Unique Video Auto-Switching function

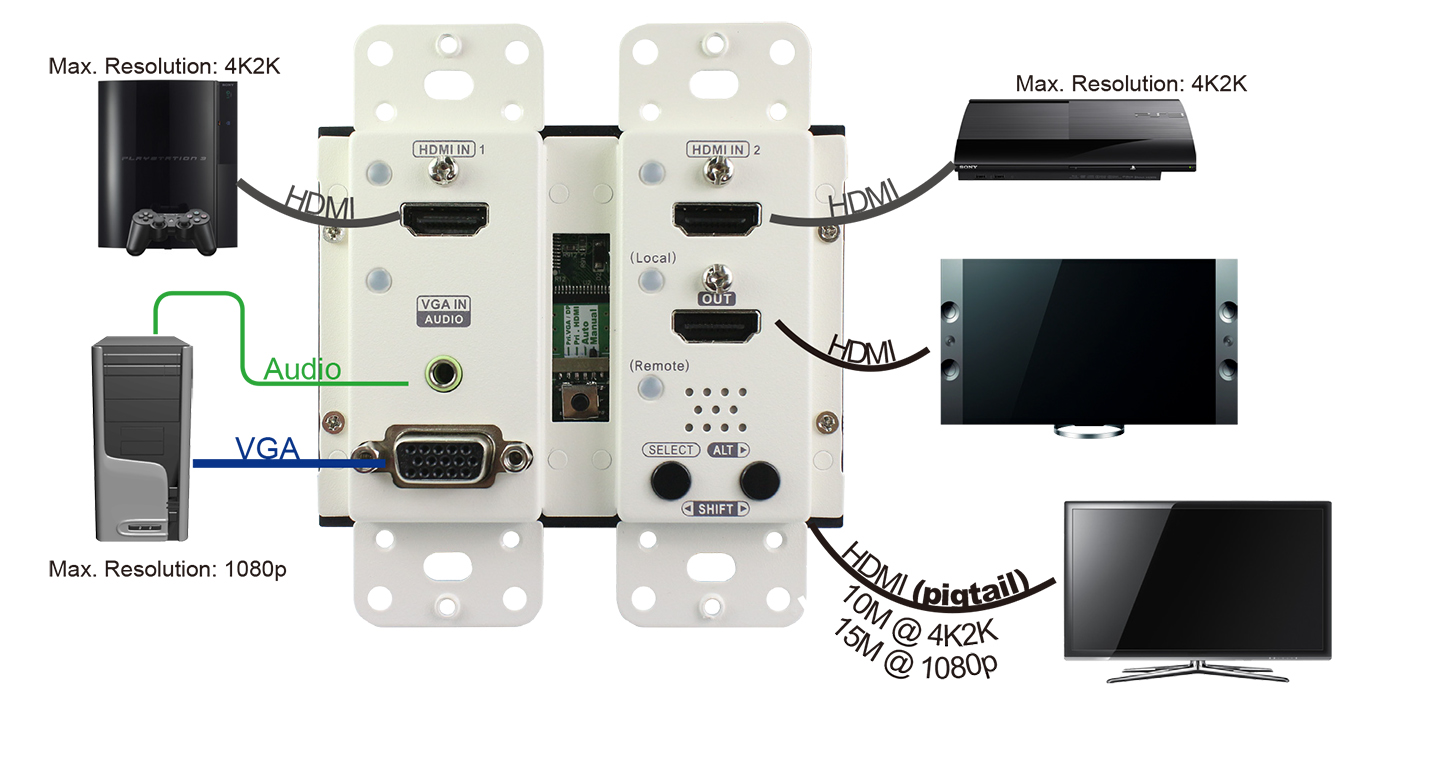

The multi-format video Switcher allows users to switch between 3 video sources which include two HDMI and one VGA accompanying with analog stereo audio, and then delivers the selected video source to two monitors (Front & Rear). The “input auto detecting” function always routes the last connecting source (as first priority) to the outputs. Wall-Mount Video Switcher, VKSMV-A312W, provides 3 extra modes for input source selection including Manual mode, Auto mode, and Priority mode.
• Switch mode: the input sources can be selected thru on-panel buttons and serial control.
• Auto mode: the last inserted source is automatically selected.
• Priority mode: Input source selected based on the priority level.
VKSMV-A312W Video Switcher supports various ways of control that can be done thru front-panel buttons or RS-232 serial control. The RS-232 serial control, built-in RJ-11 serial interface for DB9 to RJ11 cable, with Graphical User Interface (GUI) function provides users easy and friendly operation. It is perfect for public broadcasting, exhibitions, retail stores, courtrooms, bus stations, airports, education, military, office, meeting room, control room, digital signage, or the factories applications.
VKSMV-A312W Video Switcher supports various ways of control that can be done thru front-panel buttons or RS-232 serial control. The RS-232 serial control, built-in RJ-11 serial interface for DB9 to RJ11 cable, with Graphical User Interface (GUI) function provides users easy and friendly operation. It is perfect for public broadcasting, exhibitions, retail stores, courtrooms, bus stations, airports, education, military, office, meeting room, control room, digital signage, or the factories applications.
- Select HDMI or VGA with analog audio input source to HDMI output
- Screen Shift Mode provides the user to adjust the image's shifting
- Use Resolution Alternation Mode when catching multiple similar video timing
- Input source sequence selectable
- The auto-sensing function enables the system to automatically select the lastest video source
- Support resolutions up to UHD (3840 x 2160) and Full HD (1920 x 1080) and compatible with most of the popular screen resolution
- Read and store the EDID from the connecting display
- HDCP compliant, 3D-video and Blu-ray ready
- Plug-and-Play system without any drivers or software installation
- Three input sources selectable
|
Model Name |
VKSMV-A312W |
|
Input |
HDMI x 2 |
|
Output |
HDMI x 1 (Local) |
|
LED Indicator |
Source x 3 |
|
Push Button |
SELECT x 1, ALT x 1 |
|
Mode Configuration |
Pri.VGA/HDMI / Pri.HDMI / Auto / Manual |
|
Video Resolution (Max.) |
UHD (3840 x 2160) for HDMI |
|
Enclosure |
Metal |
|
Power Supply |
DC 12V |
|
H x W x D (mm) |
45 x 90 x 103 |
|
Weight (g) |
212 |
